Automation of Production Systems



Do you need to automate production? Do you need to increase the efficiency of existing solutions?

Looking for economical but effective engineering solutions? Call us at the provided contacts >>>.

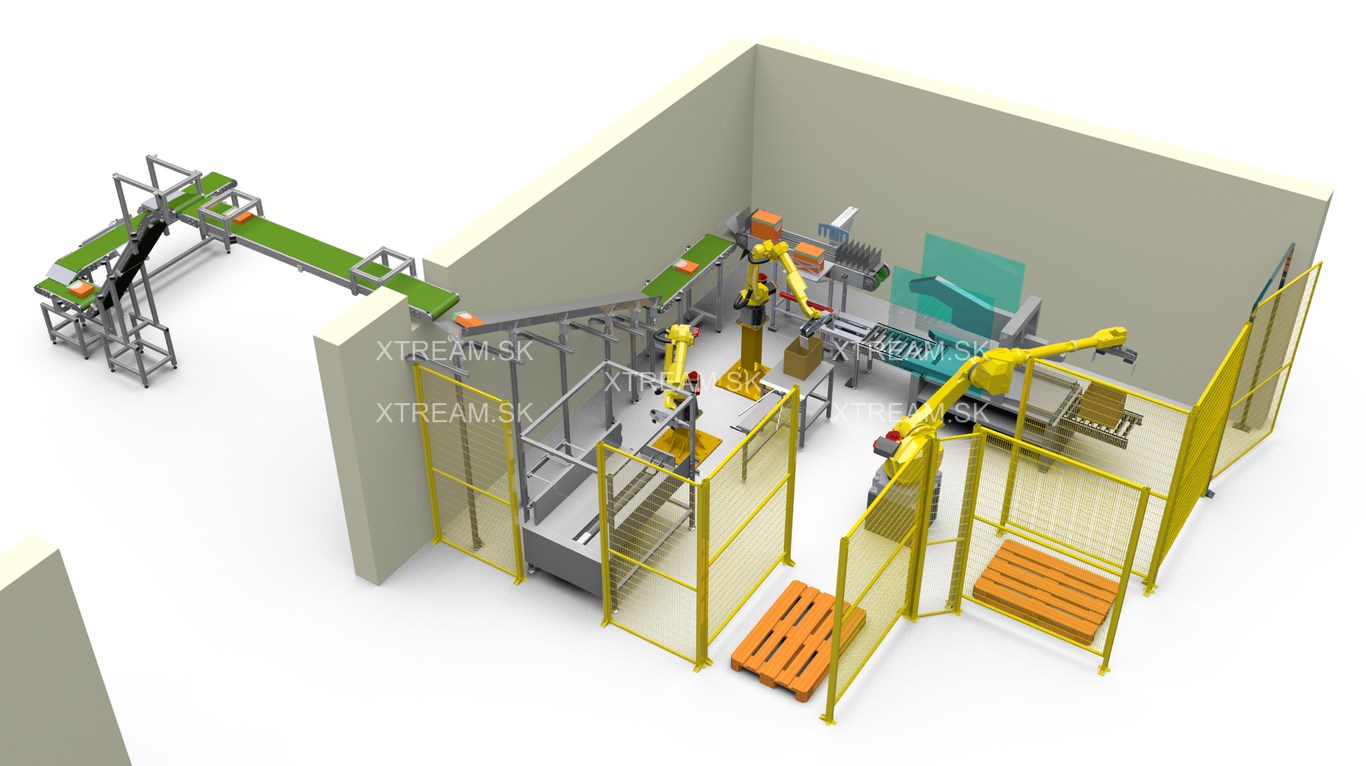

Packaging line for smaller boxes



Special requirement to raise conveyors to allow forklift movement.

There was limited space available for placing the robots.



Solution:

  • layout design
  • multi-level box movement solution
  • design of ejectors and box direction changes
  • design of slide
  • design of comb-pusher mechanism
  • design of suction table
  • design of stands and grippers for robots
  • other construction elements

Suction table



  • automatically positioned suction cups
  • box pusher with 600mm stroke
  • 2 pneumatic cylinders used
  • economical construction



Box ejector and diverter



  • the ejector (left) is used to insert individual boxes
  • the diverter (right) is used for temporarily redirecting box flow
  • sheet metal construction used
  • pneumatics

Comb-pusher mechanism for boxes



  • optimized low-cost solution
  • one pneumatic cylinder

Production line for pasta packaging



  • design of vertical pasta stacking technology
  • production line layout
  • robot gripper design
  • box tilting mechanism design
  • design of bases for robots
  • optimization of box storage
